Enterprise RAG: Production-grade RAG goes offline

Recently, I had the opportunity to build an interesting RAG (Retrieval-Augmented Generation) system. What made it uniquely challenging (and exciting!) was the fact that it was part of a larger project which was specifically designed to run on-prem, in an air-gapped environment. This meant that the underlying infrastructure had to exist and run fully offline.

In this blog post, we’ll take a look at the system’s architecture, the challenges faced and some advanced techniques and optimizations that made it all come together.

Setting a vision

Before starting a project, I think it’s always good to set a few high-level goals. These goals help immensely with downstream technical decisions and serve as guiding principles for the project.
Following were my goals for this RAG system, in order.

• Secure and Compliant
• Accurate and Robust
• Highly Performant (High throughput, Low latency)
• Simple and Modular

Starting with the basics

At its core, a RAG system is responsible for 2 things — Indexing and Retrieval.
In a basic setup, the pipelines might look something like this.

flowchart TD

subgraph retrieval[Retrieval]
D(Query pre-processing)
E(Vector search)
F(LLM response generation)
end

subgraph indexing[Indexing]
A(Document Conversion)
B(Chunking)
C(Embedding generation)
end

A --> B --> C
D --> E --> F

We take a document, convert it to a common format like Markdown, split it into fixed-size chunks (with some overlap), create vector embeddings and persist them to our database. Then, at query time, we do a vector search on the indexed chunks, pick the most relevant/best ranking ones and feed them to an LLM to generate a response.

It works, and for many cases, this might be good enough… but we’re looking for something a bit more serious ;)

Raising the bar

The basic RAG system described above has many limitations. It doesn’t, for example, do a very good job at searching for exact terms, phrases, or IDs. Fixed-size chunking misses semantic and structural shifts across texts and ends up splitting text abruptly. It also doesn’t handle metadata like tags, section IDs, and page numbers which could be used at query time to condense our search space and provide helpful citations to users. It doesn’t handle summarization for large documents that exceed the size of our context window. And a pretty major one, it doesn’t understand scanned documents at all!

After multiple deep dives, trials and errors and iterations into the effort, this is how we solved each of the above challenges.

• Hybrid document conversion - Along with native text extraction libraries like pypdf, markitdown and python-pptx, we integrated PaddleOCR, particularly, their recent PaddleOCR-VL model for OCR.
• Semantic chunking - After exploring multiple libraries, we settled on Chonkie. It gave us exactly what we were looking for — a tiny, chunking-focused library implementing semantic chunking with advanced features like Savitzky-Golay filtering and Skip-window merging.
• Hybrid search - We combined vector search with keyword search, joined our results using RRF and fed them through a cross-encoder for reranking. For keyword search, we first experimented with PostgreSQL’s native FTS but found the gold standard BM25 algorithm to be much better.
• Contextual retrieval - This technique introduced by Anthropic in 2024 improves semantic search by contextualizing each chunk w.r.t its place in the document. This is typically very costly in terms of performance, since we need to run LLM inference on each chunk. vLLM’s prefix caching made this an effective and viable approach for us.
• Map-reduce summarization - This comes directly from the well established MapReduce programming model for distributed systems. For summarizing large documents that don’t fit entirely in the context window of our LLM, we summarize document chunks in parallel, and then aggregate the summaries. We do this recursively until we get a final, cohesive summary.

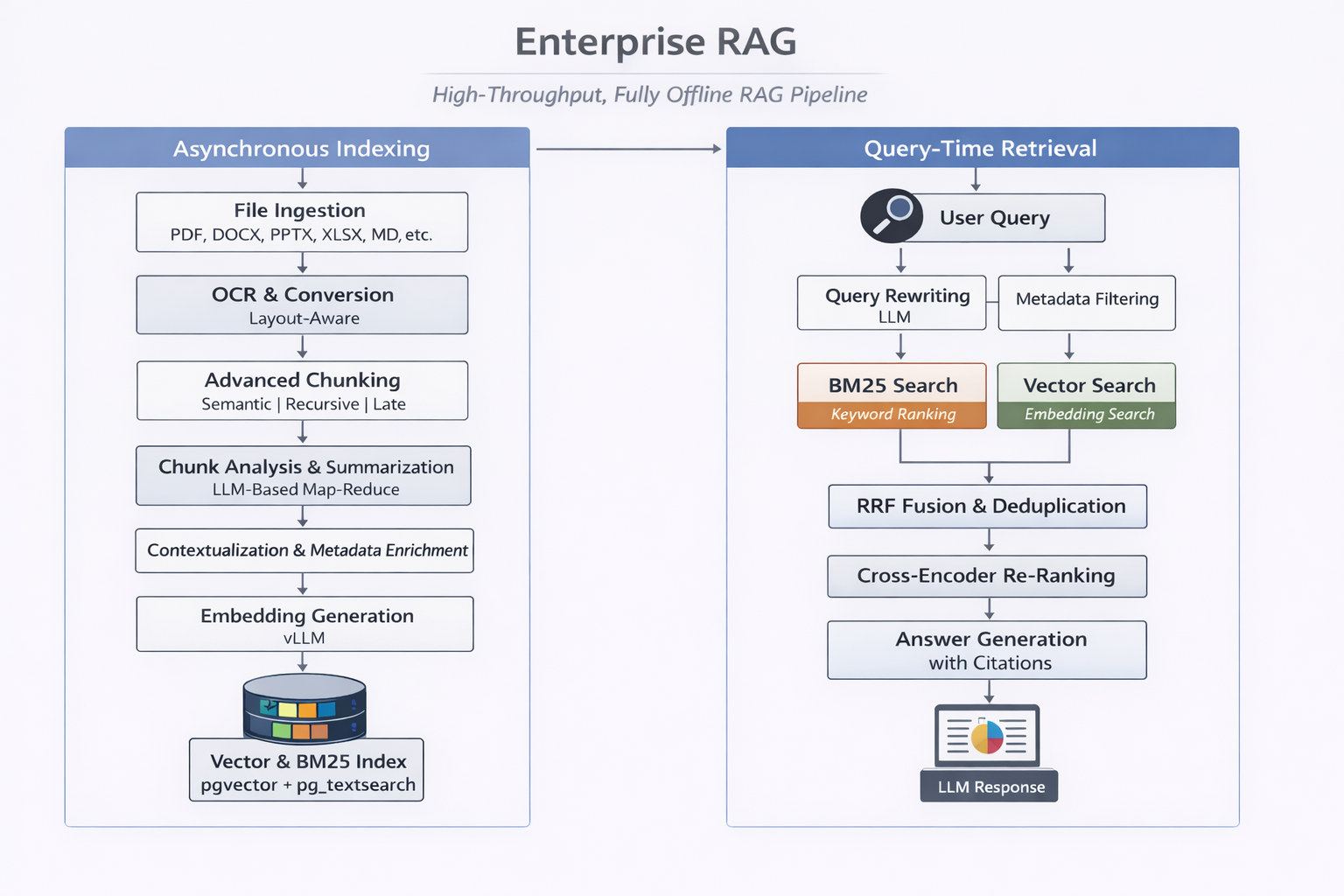

Finally, this is what our pipelines evolved to look like.

The tech stack

Being constrained to an offline environment, we built the system using the best, permissively-licensed, FOSS tools.

• vLLM - High-throughput LLM inference
• FastAPI - Async REST API
• Celery - Distributed task queue for background indexing jobs
• Haystack - LLM framework. Langchain is another solid option
• Postgres - Powered by the pgvector and pg_textsearch extensions, Postgres served as our Vector and BM25 Index
• Redis - Cache and Message Broker

Resources

Following are some great resources that helped me during my RAG deep dive.

1. vLLM Performance Tuning - https://docs.vllm.ai/en/stable/configuration/optimization/
2. Anthropic Contextual Retrieval Blog - https://www.anthropic.com/engineering/contextual-retrieval/
3. Hugging Face MTEB Leaderboard - https://huggingface.co/spaces/mteb/leaderboard/
4. Tiger Data BM25 Blog - https://www.tigerdata.com/blog/you-dont-need-elasticsearch-bm25-is-now-in-postgres
5. Chonkie - https://docs.chonkie.ai/

Conclusion

The system is by no means complete. There are many potential improvements like GraphRAG, which grounds the entities and relationships in data into a Graph database which can then be used to answer queries that span facts/entities across documents. We could also make the system Agentic by arming it with tools and long-term memory so that each query is processed using an optimized plan.

That’s it for today !

If you found this useful or want to discuss anything further, feel free to reach out to me here.
